Galvanized PVC coated 50x50 Chain link fence Diamond wire netting
Description:
Material:Low Carbon Steel wire
Mesh:1"-4" (1, 1.5, 2, 2.25, 2.4,2.5, 3, 4 inch)
Diameter: 1-4.5mm
Width: 0.5-5m and as you need
Technique: Twist or Knuckle
Colour: Green, Yellow, Blue, Red,Silver and White, etc
Type: Panel with Post or Roll
Finish:Hot dipped galvanized ,Electro galvanized,PVC coated
Guage:
These guages are most popular sales guages and we also acept customized guage please contack with
us.
| wire diameter | Aperture | Length | Height | Post's height | Post type |
| 1.8mm 2.0mm 2.5mm 3.0mm 3.5mm 4.0mm 4.5mm | 35*35mm 40*40mm 50*50mm 60*60mm 75*75mm 100*100mm | 1000mm 1500mm 2000mm 2500mm 3000mm or longer | 1000mm 1200mm 1500mm 1800mm 2000mm 2500mm 3000mm 4000mm 5000mm | 1500mm 1700mm 2000mm 2300mm 2500mm 3000mm 4000mm 5000mm 6000mm | "Y" Post "T" Post Round tubes |
Surface treatment:
| Surface treatment | Min | Max |
| Electric Gal | 20g / ㎡ | 60g / ㎡ |
| Hot dipped Gal | 35g / ㎡ | 700g / ㎡ |
| Powder Sprayed coating | 100 microns | 120 microns |
| PVC / PE dipped coating | 400 microns | 600 microns
|

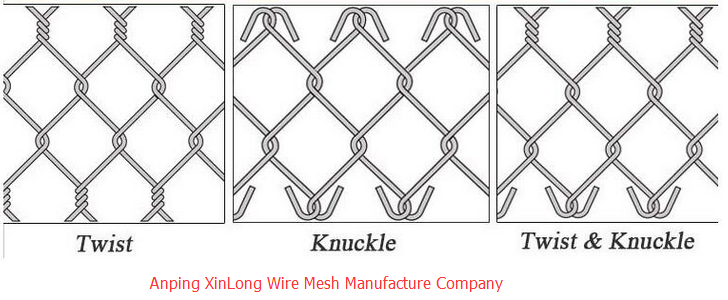

(1)Knuckle-Knukle:
The wire is knuckled at both ends and abbreviated as(KK)
(2)Knuckle-Barbed:
The wire is knuckled at the bottom and twisted into a barbed selvedge at the top and is abbreviated as (KB)
(3)Barbed-Barbed:
The wire is twisted in to a barbed selvedge at both ends and is abbreviated as(BB)
Serivce
1.Study from our product description and confirm which specification is you prefer
Contact us by online or email to get one-on-one interaction
2.Tell us what usage and quantity you need, we supply whole set solve situation
3.Get Free Sample:
Contact with us and tell us what specification you need, we could send immediately if our stock have this
Shipping &Delivery
Product Tags:
|
|
Multi Function Diamond Wire Netting , Chain Link Mesh Fence Twist / Knuckle Images
|
